Body Temperature Detector Column with Face ID

Safeagle Column Type with Face ID Walk Through Infrared Human Body Temperature Detector
At present, the market is full of infrared single-point temperature measurement equipment, forehead measurement, wrist measurement, and other methods. Such Body temperature detectors cannot meet the import and output of data. Statistics and analysis of individual measured temperatures.

Specification:

Product Model:
Resolution: 200W
Type: RGB+Infrared Sensor

Camera:
Aperture: 4.0mm
Focal Length: 0-2M
White balance: Auto

Screen:
Size: 8-inch, full-view IPS LCD screen
Resolution: 1280*800,brightness 400cd

Processor:
CPU: 4 core RK3299

RAM:
DDR3: 4GB

ISP:
Image Processing: Built-in dual ISP

Local storage:
TF card: 32GB

Accessory:
Temperature Measurement: Thermal imaging temperature detection module (Hyman, Germany)
Fill light: Infrared, LED fill light
Card reader module (reserved): IC/ID card reader, QR code reader
Network module: Support wired networking, 2.4G wifi, 4G network card

Port:
Audio: All the way audio line out
USB port: USB2.0 micro 2pcs
Serial 232: 2 RS232 interfaces, 1 WG input, 1 WG output
Wiegand interface: 2.5mmX2PIN
Reset interface: Side holes, external buttons
OTG interface: 1 way
Temperature Measure Distance: 0.2-2M
Temperature measurement accuracy: ±0.3℃
Face recognition algorithm: Despise
Local (offline use): Local 20000 face database
Face Detection: Support simultaneous detection and tracking of 5 people

Function:
1:N Face recognition: Support 1 in 10,000 mis-recognition rate, 99% pass rate
1:1: Support card authentication module (optional), ID card module can achieve 1: 1 face comparison
Stranger detection: support
Distance recognition: support
Equipment (remote upgrade): support
Device Interface: Equipment management, rights management, personnel / photo management, record query, etc.
IP64,support waterproof & dustproof & outdoor use
Power supply: DC12V
Working Temperature: -10°—60°
Working Humidity: 10%—90%
Static electricity: 4K/8K
Power consumption: 5W MAX
Installation method: Wall mount, desktop stand, gate installation, floor stand

Software Algorithms Despise:
- Face Recognition, face database supports 2W faces, top1 hit rate is 99.99% Authentication comparison accuracy rate is more than 99%
- Fast Recognition Speed:
- Face tracking and detection takes about 20ms
- Face feature extraction takes about 200ms
- The time required for living face detection is 0.2ms; Feature comparison takes 0.5ms (10,000 face database, multiple recognition and average)

Application:
- Widely used in various public places and various places where face access control is required, like school, community, office building, hotel, hospital, etc...

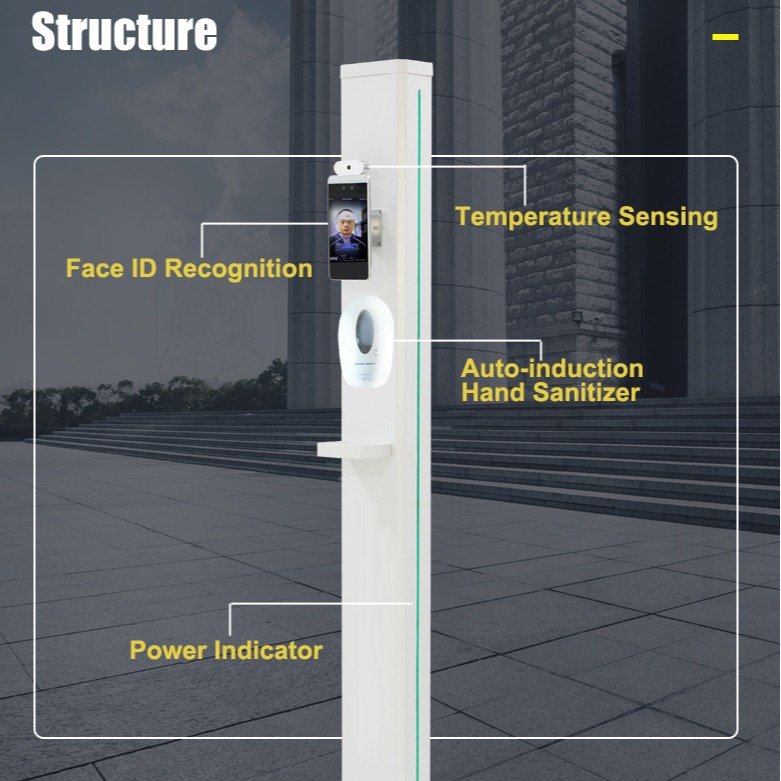

- Integrated the terminal equipment & non-contact disinfection device as a whole set, the overall appearance is elegant, high practicality; easy plug-and-play, which is very convenient and flexible for installation; reserved data interface location, convenient for data import and output.Body temperature detector

 Government Regulatory Compliance:
- The Safeagle Body Temperature detector is in full compliance with the mandatory regulations for aviation security.
